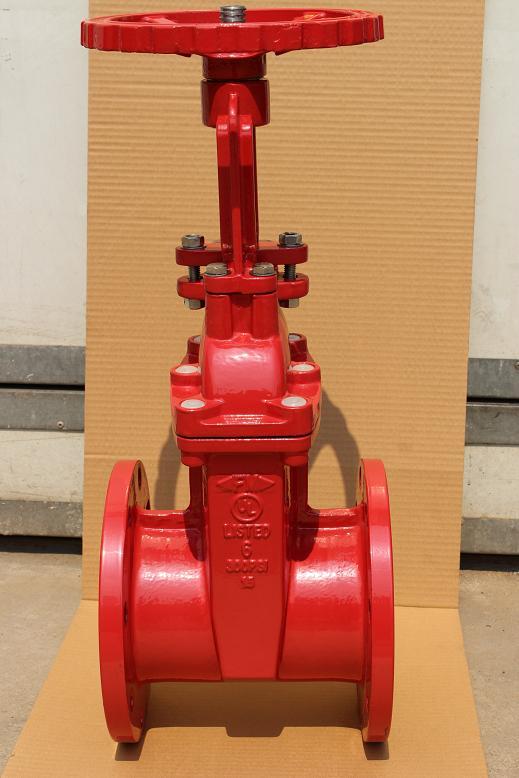

fire rising stem resilient seat gate valve

fire rising stem resilient seat gate valve

125LB Cast iron rising stem flange gate valve

Nominal diameter: DN50- 400

Working pressure: PN10/16Bar

Face-to-face:  EN558 Series10

Connection:  ANSI B 125LB flange.

Tightness check: API 598    ISO 5208   EN12226-2

Epoxy fusion coating.

125LB Cast iron rising stem flange gate valve

Working Pressure

PN16

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 150°C

Suitable Media

Water, sewage water



125LB Cast iron rising stem flange gate valve

Parts

Materials

Body

cast iron

Disc

stainless steel / Ductile iron

Seat

stainless steel

Stem

2Cr13/SS431/ SS304

Stem nut

Bronze
